The main components of the turbine pump

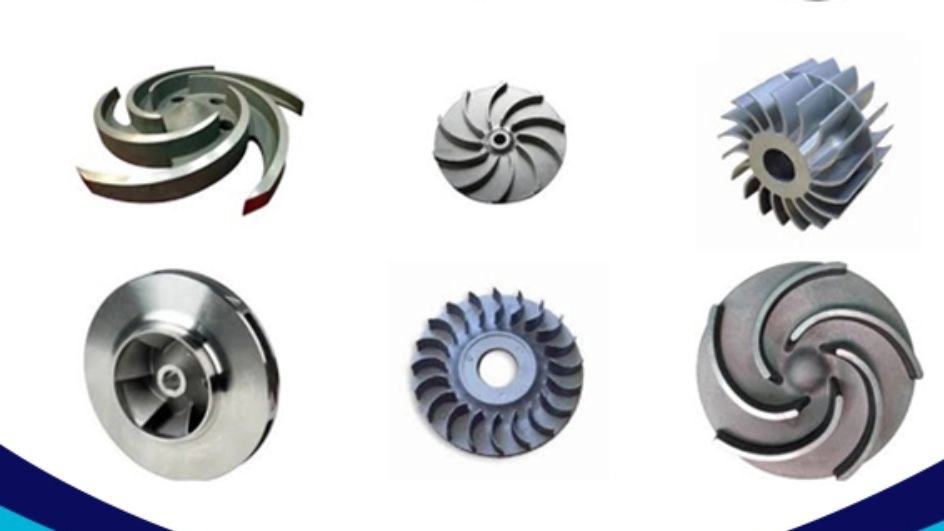

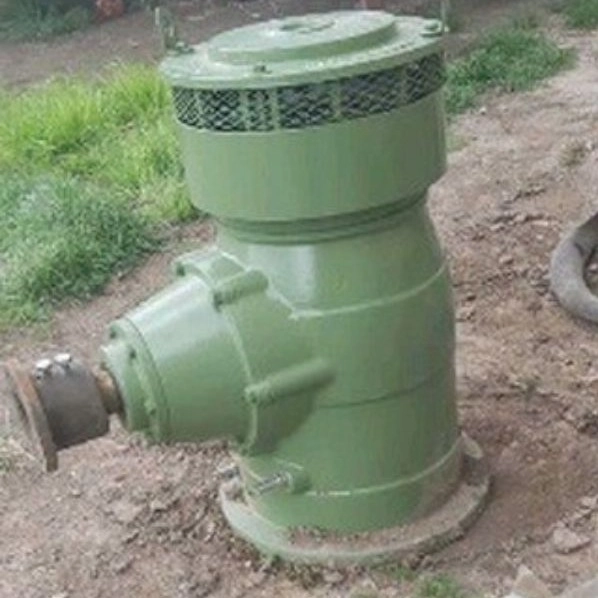

Pump impeller The pump impeller is one of the rotating parts that has curved vanes and these vanes transfer kinetic energy to the fluid. As the impeller rotates, it creates a low-pressure area that forces water out of the well or source and into the pump. Pump bowl The pump bowl houses the impeller and is designed to effectively direct the flow of water as it moves through the pump. The pump bowl is usually made of durable materials such as stainless steel or cast iron to withstand harsh conditions and immersion in fluids. Shaft The pump shaft connects the motor above the ground to the impeller below the surface of the water. The shaft transfers rotational power from the motor to the impeller, allowing it to rotate and pump water. Electric motor The electric motor is the driving force of the turbine pump, which provides the power necessary to rotate the impeller and the water pump. The electric motor is usually placed above ground level to keep it dry and protected. Discharge head The discharge head is the enclosure that connects the pump to the piping system and allows the pumped water to be transported to its intended destination such as storage tanks or distribution networks.

Turbine pumps are widely used in various applications due to their efficiency, reliability, and ability to reach high flow rates. These pumps are especially suitable for water management in industrial and agricultural sectors as well as urban water supply systems. Agricultural irrigation In the agricultural sector, turbine pumps play an important role in irrigation systems. They are used to collect water from wells, reservoirs or rivers and supply it to irrigation networks and provide a stable and reliable source of water for agricultural products. Turbine pumps are suitable for transferring water from deep wells and for agricultural areas with deep water sources. are an ideal option.

Municipal water supply Turbine pumps play an important role in urban water supply. Turbine pumps are commonly used in urban water supply systems to extract water from underground sources such as wells and aquifers. These pumps can deliver water to water treatment facilities or directly to distribution networks and act as a key factor in the sustainable supply of clean water for residents and businesses.

Fire protection Turbine pumps are used in fire protection systems to supply large volumes of water to firefighting equipment, hydrants and sprinkler systems. Their ability to handle high pressure and flow rates is critical in emergency situations where rapid water delivery is essential to firefighters.

Industrial applications Many industries require significant amounts of water for their processes, and turbine pumps are used to extract water from wells or other water sources. Industries such as mining, power generation, and manufacturing rely on turbine pumps to provide reliable water for their operations. Groundwater management Turbine pumps play an important role in managing groundwater levels in areas prone to flooding. They can be used to lower the reservoir level and pump excess water from low-lying areas, prevent water damage, and create more suitable conditions for construction and agricultural activities. Water well Turbine pumps are an excellent choice for water wells in residential and commercial buildings. Their ability to draw water from significant supply depths ensures a constant flow of water for various purposes including domestic use, landscaping and livestock irrigation. Water transfer and distribution Turbine pump is used in large water transfer projects to transfer water from one place to another. For example, turbine pumps can move water from a river or reservoir to treatment plants or water storage facilities, enabling efficient distribution of water over a very wide area. Water extraction Turbine pumps are used for dewatering, especially in construction sites and mining operations. They can remove excess water from the drilled logic. By removing the water in the excavated areas, it is possible to continue the operation of the equipment.
